Definitions for Freestanding Cabinets
Defining Part Numbers:
NC = Complete cabinet
Comes complete with Cabinet Frame, Front and Rear 19" Mounting Rails (mounting positions screen printed on each rail starting from bottom up)

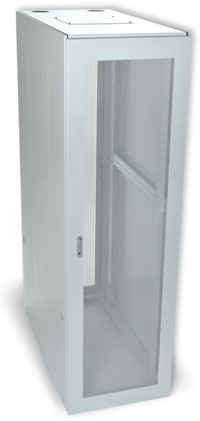

Top Panel, Levelling Feet, 2 Punched Rails per side, 2 Side Panels, Front Glazed Door and Steel Rear Door (in the case of ‘Server Cabinets’ Front and Rear doors to be Perforated)
NF = As above but with no Side Panels or Doors
The next two characteristics are numeric and define the height of the cabinet in Rack Units:
24 = 24RU 42 = 42RU 47 = 47RU
The following two characteristics are numeric and define the Depth and Width of the Cabinet:
60 = 600 Deep
80 = 800 Deep
10 = 1000 Deep
12 = 1200 Deep
Where 800 wide is required instead of the default 600 wide put an “8” at the end of the part number ie. Part number for a cabinet that is 24RU high, 600 deep and 800 wide is:
NC24608
Part number for a cabinet that is 42RU high and 600mm deep that does not require panels and only has Front and Rear Mounting Rails is:
NF + 42 + 60 = NF4260
Part number for a cabinet that is 47RU high and 1000mm deep that does require all the panels and will be used in a File Server environment is:
NC + 47 + 10 = NC4710
| Complete Cabinet | Number of RUs | Depth of Cabinet | Width of Cabinet | Enclosure Number = End Result |
|---|---|---|---|---|
| NC | 24 | 600 | 600 | NC2460 |
| NC | 42 | 800 | 600 | NC4280 |
| NC | 47 | 1000 | 600 | NC4710 |
| NC | 47 | 1200 | 800 | NC47128 |
