Power and Fans
Horizontal and Vertical Power Rails
Features
- 10 amp
- Hardware and Bracketry included
- Colour – RAL 9005 Black
- Supplied complete with 10 amp circuit breaker and 2.5 metre flex lead and plug
- 15 amp and 20 amp versions available on request
- IEC and captive plugs also available on request
Horizontal Features
- Mounts to 19" mounting Rails
Vertical Features
- Mounts to all frame elements
- Note: 20 outlet model contains 45 degree angled socket faces to allow power pack type plugs
| Part No. | Description | Height |
|---|---|---|
| LPR6H10A | 6-way horizontal | 1RU |
| LPR10H10A | 10-way horizontal | 2RU |
| LPR10H10A | 10-way vertical | |
| LPR20H10A | 20-way vertical |

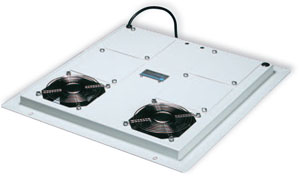

Fan Kits
Excessive heat build-up is easily treated with Rittal’s fan trays. By dispersing warm air out of the racks, fan trays ensure your equipment remains cool. Fan trays are fi tted during confi guration or retro-fi tted without any disruption to the equipment within the rack.
| Part No. | Description |
|---|---|
| DNFAN2 | 2 Fan Roof Mounted Fan tray |
| DNFAN4 | 4 Fan Roof Mounted Fan tray |
| DNFAN4R | 4 Fan Rach Mounted Fan tray |

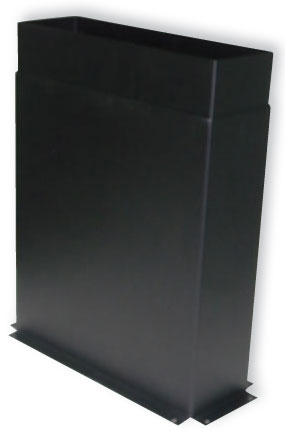

Telescopic Chimney (Cable or Air Duct)
Features:
- Height adjustable from 500mm to 780mm
- Retro fi ttable around an existing cable installation
- Access area cross section 450mm x 140mm
- Colour – RAL7035 Grey (pictured as a black variant)
| Part No. |
|---|
| LCHIMT760 |
