Shelves
The extensive range of Rittal shelves allows equipment to be mounted easily. The Rittal offering includes fixed, sliding and cantilever shelves.
Fixed Shelf
Application
- Can be used with all 19" cabinets
Features
- Unique minimised hardware fixing system
- Adjustable mounting position
- Includes mounting hardware and bracketry
- Finish – RAL7035
| Part No. | Width x Depth | Fits Cabinet |
|---|---|---|
| L714450 | 19" x 450mm | 600 Deep - 800 Deep |
| L714600 | 19" x 600 mm | 800 Deep - 1000 Deep |
| L714740 | 19" x 740mm | 800 Deep - 100 Deep - 1200 Deep |

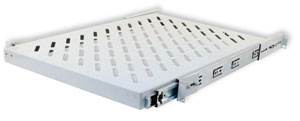

Sliding Shelf
Application
- Can be used with all 19" cabinets
Features
- Adjustable mounting position
- Includes mounting hardware and bracketry
- 30kg rating
- Finish – RAL7035
| Part No. | Width x Depth | Fits Cabinet |
|---|---|---|
| L714450T | 19" x 450mm | 600 Deep - 800 Deep |
| L714600T | 19" x 600 mm | 800 Deep - 1000 Deep |
| L714700T | 19" x 700mm | 800 Deep - 100 Deep - 1200 Deep |
Cantilever Shelf Doors
| Part No. | Size |
|---|---|
| (1RU 180mm Deep) L7119180 |
1RU 180mm Deep |
| (2RU 260mm Deep) L7119260 |
2RU 260mm Deep |
