Network Cabinets - 600 and 800 deep
Future-proof your IT system with network cabinets from Rittal. A variety of system platforms accommodate different networking requirements. With optimum strength via a fully welded frame and an extensive range of accessories your network grows effortlessly in line with new tasks to meet your business needs today and tomorrow.

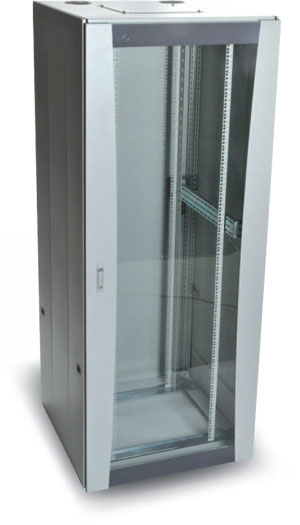

Complete Cabinet Assembly NC Series
Supply includes:
- Stiffened Side Panels (2 off)
- Punched Sections per side for mounting 19" Rails and ancillary equipment (2 off)
- 19" Rack Rails with screen printed RU identifiers - infinitely adjustable within cabinet frame (4 off)
- Glass Front Door (steel framed) Lockable
- Steel Rear Door Lockable
- Removable Top Access Plate and 4 capped cable entry points in roof
- Levelling Feet (set of 4)
- Finish - RAL7035
Complete Cabinet (NC): 600 Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NC2460 | 600 | 1200 | 600 | DN24U 600x600 Complete Rack |
| NC2480 | 600 | 1200 | 800 | DN24U 600x800 Complete Rack |
| NC4260 | 600 | 2000 | 600 | DN42U 600x600 Complete Rack |
| NC4280 | 600 | 2000 | 800 | DN42U 600x800 Complete Rack |
| NC4760 | 600 | 2200 | 600 | DN47U 600x600 Complete Rack |
| NC4780 | 600 | 2200 | 800 | DN47U 800x600 Complete Rack |
Complete Cabinet (NC): 800 Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NC42608 | 800 | 2000 | 600 | DN42U 800x600 Complete Rack |
| NC42808 | 800 | 2000 | 800 | DN42U 800x800 Complete Rack |
| NC47608 | 800 | 2200 | 600 | DN47U 800x600 Complete Rack |
| NC47808 | 800 | 2200 | 800 | DN47U 800x800 Complete Rack |
Cabinet Frame Assembly NF Series
Suply includes:
- Punched Sections per side for mounting 19" Rails and ancillary equipment (2 off)
- 19" Rack Rails with screen printed RU identifiers - infinitely adjustable within cabinet frame (4 off)
- Removable Top Access Plate and 4 capped cable entry points in roof
- Levelling Feet (set of 4)
- Finish - RAL7035
Frame Only (NF): 600 Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NF2460 | 600 | 1200 | 600 | DN24U 600x600 Frame Only |
| NF2480 | 600 | 1200 | 800 | DN24U 600x800 Frame Only |
| NF4260 | 600 | 2000 | 600 | DN42U 600x600 Frame Only |
| NF4280 | 600 | 2000 | 800 | DN42U 600x800 Frame Only |
| NF4760 | 600 | 2200 | 600 | DN47U 600x600 Frame Only |
| NF4780 | 600 | 2200 | 800 | DN47U 600x800 Frame Only |
Frame Only (NF): 800Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NF42608 | 800 | 2000 | 600 | DN42U 800x600 Frame Only |
| NF42808 | 800 | 2000 | 800 | DN42U 800x800 Frame Only |
| NF47608 | 800 | 2200 | 600 | DN47U 800x600 Frame Only |
| NF47128 | 800 | 2200 | 1200 | DN42U 600x1200 Frame Only |
| NF47808 | 800 | 2200 | 800 | DN47U 800x800 Frame Only |
