Server Cabinets – 1000 and 1200 deep
Rittal’s server cabinets represent of forty years of product evolution; with a comprehensive range of benefits each individual rack makes an important contribution to the physical security of your IT infrastructure. Time honoured experience in energy management together with the development of pioneering climate concepts enables relevant technologies to fuse into complete IT infrastructure solutions.

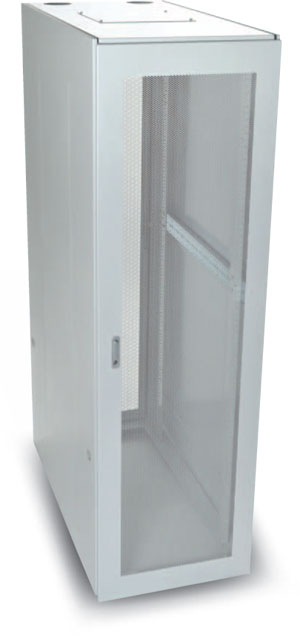

Complete Cabinet Assembly - NC Series
Supply includes:
- Stiffened Side Panels (2 off)
- Punched Sections per side for mounting 19" Rails and ancillary equipment (2 off)
- 19" Rack Rails with screen printed RU identifiers - infinitely adjustable within cabinet frame (4 off)
- Vented Front Door Lockablee
- Vented Rear Door Lockable
- Removable Top Access Plate and 4 capped cable entry points in roof
- Levelling Feet (set of 4)
- Finish - RAL7035
Complete Cabinet (NC): 600 Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NC4210 | 600 | 2000 | 1000 | DN42U 600x1000 Complete Rack |
| NC4212 | 600 | 2000 | 1200 | DN42U 600x1200 Complete Rack |
| NC4710 | 600 | 2200 | 1000 | DN47U 600x1000 Complete Rack |
| NC4712 | 600 | 2200 | 1200 | DN47U 600x1200 Complete Rack |
Complete Cabinet (NC): 800 Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NC42108 | 800 | 2000 | 1000 | DN42U 800x1000 Complete Rack |
| NC42128 | 800 | 2000 | 1200 | DN42U 800x1200 Complete Rack |
| NC47108 | 800 | 2200 | 1000 | DN47U 800x1000 Complete Rack |
| NC47128 | 800 | 2200 | 1200 | DN47U 800x1200 Complete Rack |

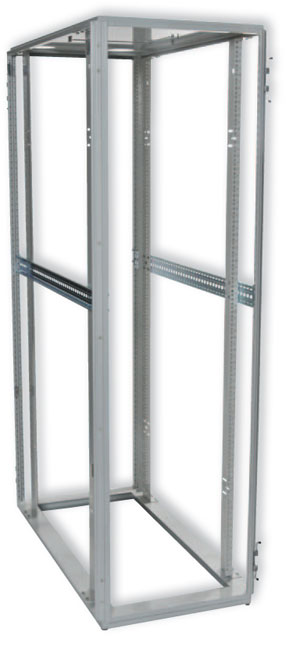

Cabinet Frame Assembly NF Series
Suply includes:
- Punched Sections per side for mounting 19" Rails and ancillary equipment (2 off)
- 19" Rack Rails with screen printed RU identifiers - infinitely adjustable within cabinet frame (4 off)
- Removable Top Access Plate and 4 capped cable entry points in roof
- Levelling Feet (set of 4)
- Finish - RAL7035
Frame Only (NF): 600 Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NF4210 | 600 | 2000 | 1000 | DN42U 600x1000 Frame Only |
| NF4212 | 600 | 2000 | 1200 | DN42U 600x1200 Frame Only |
| NF4710 | 600 | 2200 | 1000 | DN47U 600x1000 Frame Only |
| NF4712 | 600 | 2200 | 1200 | DN42U 600x1200 Frame Only |
Frame Only (NF): 800Wide
| Part No. | Width | Height | Depth | Description |
|---|---|---|---|---|
| NF42108 | 800 | 2000 | 1000 | DN42U 800x1000 Frame Only |
| NF42128 | 800 | 2000 | 1200 | DN42U 800x1200 Frame Only |
| NF47108 | 800 | 2200 | 1000 | DN47U 800x1000 Frame Only |
| NF47128 | 800 | 2200 | 1200 | DN42U 800x1200 Frame Only |
